Description:
Voltage: 1.4-2.0V
Current: 1400mA
Band: 850NM
Viewing angle: 120 degrees
Life:50000H life
Bracket:copper silver bracket
Chip: Taiwan chip

Features: low consumption, energy saving, fast heat, long life,ROHS certification, no radiation

Application: infrared cameras, infrared surveillance, burglar alarm, building intercom, infrared waterproof, infrared flashlight

Note:
1. Welding time can not exceed 3S;
2. The welding temperature must less than 260 degrees;
3. reflow soldering only allow 1 time
4. good cooling measures, the infrared LED try to ensure adequate heat sink area
5. To make the infrared light-emitting diodes live longer, it is recommended to use a more stable current or constant current driver IC, rather than using the constant drive power or IC

Package Included:

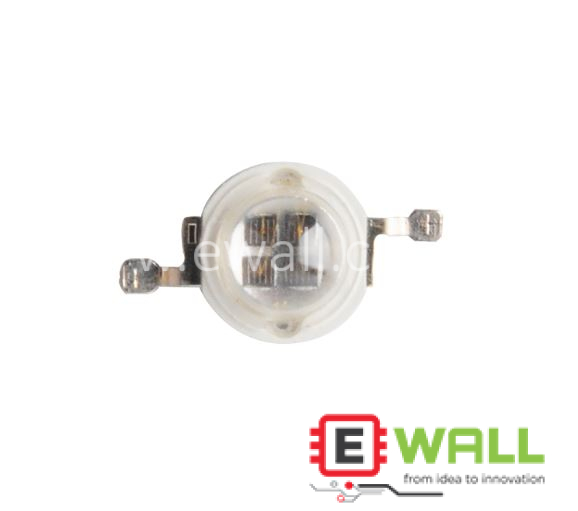

1 X 5W 850nm Infrared LED Emitter
