|RIPPLE & NOISE(max).||150mVp-p|
|SETUP,RISE TIME||1000ms, 50ms/230VAC 1000ms,50ms/115VAC at full load|
|HOLD UP TIME(Typ.)||20ms/230VAC 16ms/115VAC at full load|
|INPUT||VOLTAGE RANGE||90 ~ 132VAC / 180 ~ 264VAC by switch 254 ~ 370VDC|
|AC CURRENT(Typ.)||4.5A/115VAC 2.5A/230VAC|
|INRUSH CURRENT(Typ.)||40A/115VAC 55A/230VAC|
|LEAKAGE CURENT||<3.5mA / 240VAC|
|PROTECTION||OVERLOAD||105 ~ 150% rated output power|
|Protection type : Constant current limiting, recovers automatically after fault condition is removed|
|OVER VOLTAGE||27.6 ~ 32.4V|
|Protection type :Shut down O/P voltage, re-power on to recover|
|OVER TEMPERATURE||95°C+5°C (3.3V); 100°C+5°C(5V); 90°C+5°C (7.5V); 85°C+5°C(12~24V); 80°C+5°C(27~36V); 75°C+5°C(48V) (TSW1) Detect on case|
|Protection type : Shut down O/P voltage, recovers automatically after temperature goes down|
|ENVIRONMENT||WORKING TEMP.||-20~+50°C (Refer to "Derating Curve")|
|WORKING HUMIDITY||20~90% RH non-condensing|
|STORAGE TEMP HUMIDITY||-20~+85°C, 10~95%RH|
|TEMPCOEFFICIENT||±0.03% /°C(0~50°C )|
|VIBRATION||10 ~ 500Hz, 5G 10min./1cycle, 60min. each along X, Y, Z axes|
|SAFETY & EMC||SAFETY STANDARDS||U60950-1 approved|
|WITHSTAND VOLTAGE||I/P-O/P:3KVAC I/P-FG:1.5KVAC O/P-FG:0.5KVAC|
|ISOLATIONRESISTANCE||I/P-O/P, I/P-FG, O/P-FG :100M Ohms / 500VDC / 25°C/ 70% RH|
|OTHERS||MTBF||271.9Khrs min MIL-HDBK-217F(25°C)|
Support MACH3 and other computer software that supports parallel port control
USB power supply and the separation of the external power supply to ensure computer security
External wide voltage input, 12-24V, with anti-reverse function
All the input signals are all isolated by the lotus root, can be emergency stop, knife, limit, etc., to protect computer security
One channel relay module output port, it can control the spindle switch. Output port is P17 port
All the way through the optocoupler isolated 0-10V analog voltage output, you can control the analog interface with the corresponding frequency converter to control the spindle speed
Output port for the P1 port
Open all 17 ports, it can be connected with optocoupler drive, it can control the 5-axis stepper motor
P1 is PWM output, it can be controll the spindle governor which with a coupler input
1 X 5 Axis CNC Breakout Board with Optical Coupler
1 X USB Cable

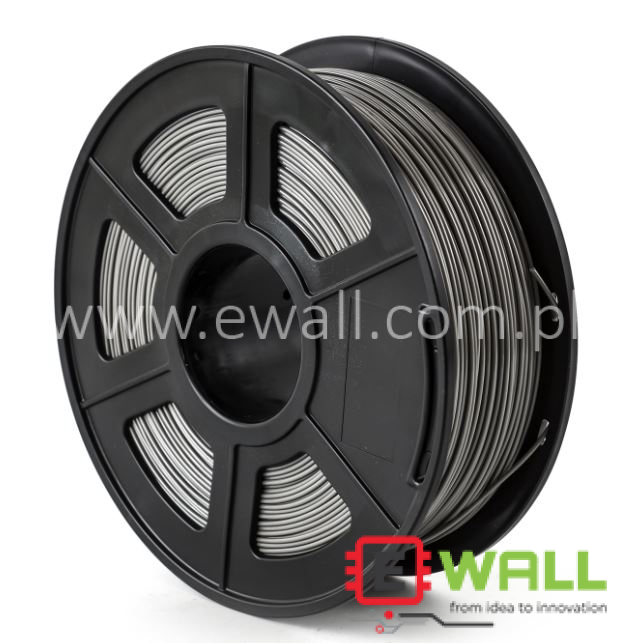

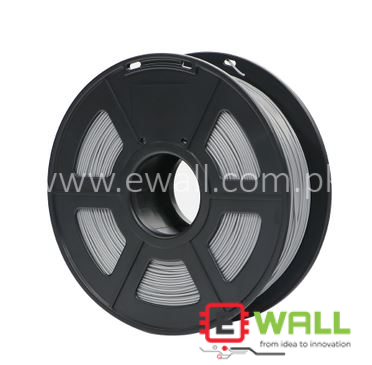

Temperature: 190C to 220C Degree
Heating Bed :0 to 60C degree
Color: Light Grey
Weight : 1Kg
Mesh fiber tape transparent tape stripe 25mm * 25 m
Wiring Type: Screw terminal
Size: approx. 110*78*38mm
Input Voltage: DC 10V-55V
Max. Current: 60A
Output Voltage: Linear with load
Continuous Current: 40A
Speed Range: 0% to 100%
Control Frequency: 15KHz
Regulation Method: Potentiometer(linear)
Regulation Type: Regulating Current
Forward & Reverse: Support
Digital Location: 0-100
Suitable for: Brushed DC motor
Well design case can protect the controller board from damage as well as dissipate heat.
Designed with a digit display that shows the rate in percent of actual speed to maximum speed.
This motor speed controller can be installed to accomplish reversing the motor's direction.
With high power allows setting rotation direction.
Fine workmanship and good performance.
Stable and reliable.
Long service life.
1 x Motor Speed Controller
This bunch of motors is another fast twofold metal roller brushless DC motor in mass! The measure of the motor is like that of the 775 motors. The backside of the motor is welded with a round section. The section has three settling screw openings. The front shaft of the motor is M4 strung (12V void load 10000 rpm, no-heap current 0.2A, blocking current 3.5A) (24V no heap 20,000 rpm, no-heap current 0.35A, bolted current 7A)
Truly appropriate for DIY hand bore/crushing/cutting force!
This motor needs RC plane brushless ESC to drive, our 7-24V three-stage brushless drive can be flawlessly determined, a 6V voltage can be begun, 9V control up activity cannot obstruct the motor shaft by hand.
Speed: 10000-20000RPM ( requires a driver with corresponding voltage )
Estimated power: 50W
Weight: 320 grams
100% Brand New and High Quality.
2nd GEN 3D Printing Pen PLA Filament Arts Drawing LED Display.
This 3D print pen is designed for making the models or art & crafts creatively just by drawing with it on the surface.
Insert the multi-colour ABS/PLA filament into the 3D pen and preheating for 30 seconds, and then you can draw the different 3D objects coming from your mind freely.
It is compatible with ABS and PLA filament and the speed of extrusion is adjustable.
The small LCD screen displays "ABS" or "PLA", and with two buttons for adjusting the temperature, which provide much convenience.
Great gift for Kids, friends, anf families.
Extrusion Mode : Fused Deposition Modeling / Melting
Material used :ABS/ PLA
Pen Length :17cm
Diameter of materail :1.75mm
Speed Of extrusion: adjustable
Plug:EU/US (Pls choose the correct plug )
Packing Includes :
1 X 3D Printer pen
1 X Power Adapter
1 X 10m Testing PLA Filament (random color )
1 X Holder
1 X Manual
PCB Engraving CNC Bits 3.175*30*0.2
