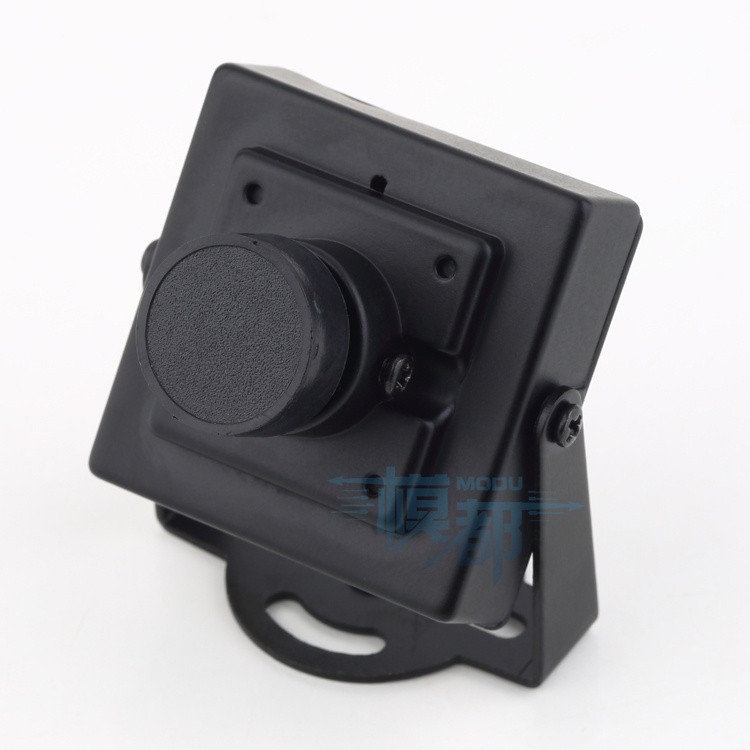

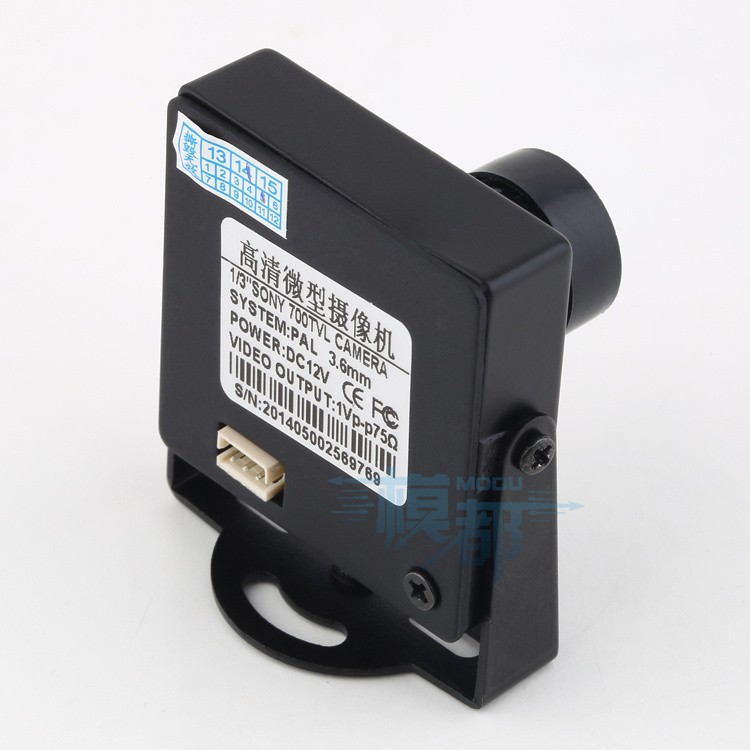

This is an incredible camera for FPV with extraordinary low light Performance. Utilizing most recent SONY Effio-E chip arrangement, supporting OSD manual control, fresh and clear pictures, striking hues, low enlightenment, wide voltage, small-scale control.
Regardless you'll have the capacity to see everything unmistakably through the camera even in an extremely dim condition (0.002lux twilight condition). It likewise adjusts to lighting changes quick, which is basic for FPV flying that regularly experience steady changes in different lighting conditions.
This camera additionally includes an ultra-high 700p goals contrasted with normal low-goals cameras (for the most part just 480p).TECHNICAL SPECIFICATION:

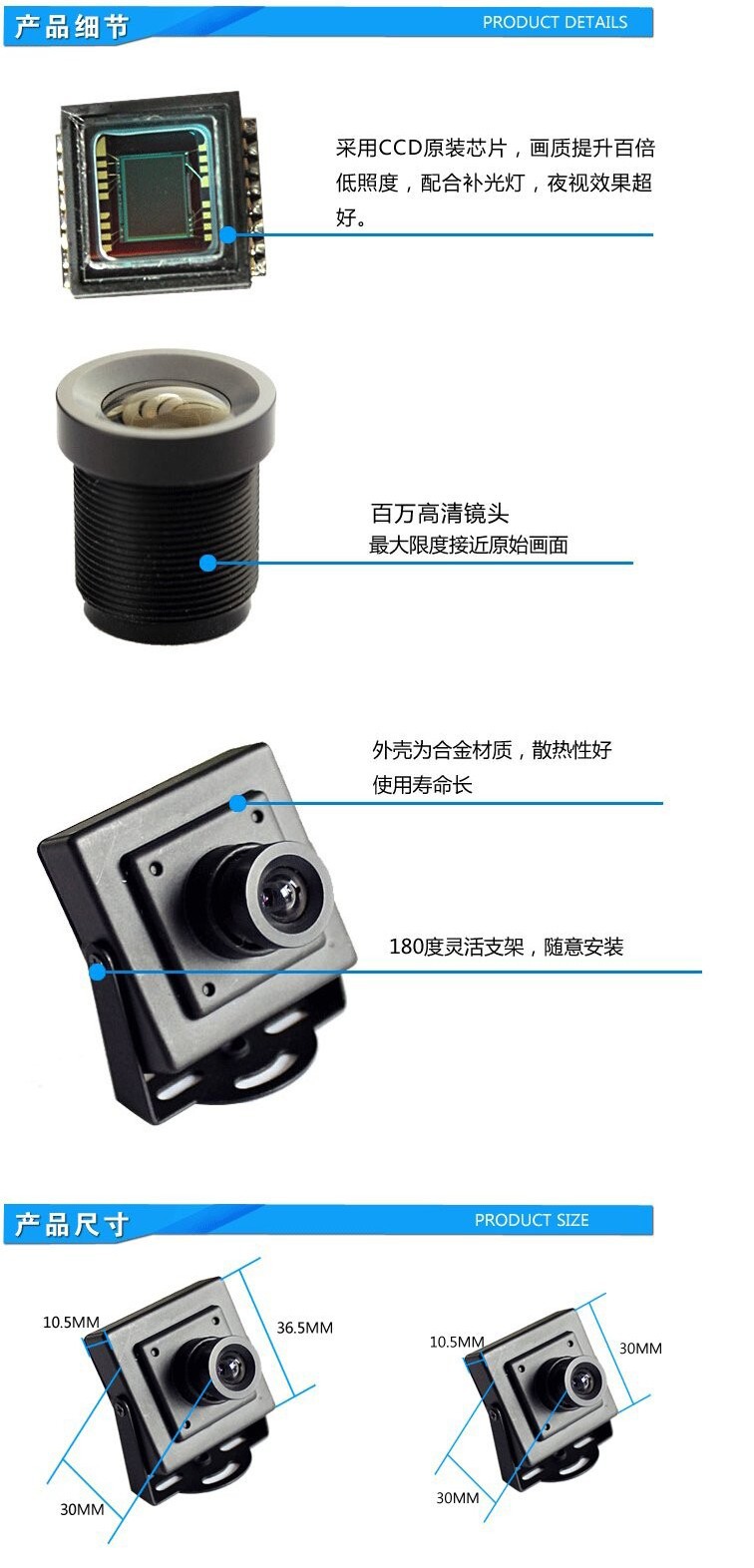

- Imaging Device: 1/3" Sony 960H Ex-view HAD CCD II - PAL
- Horizontal Resolution:700TVL
- Effective Pixels: NTSC: 976H×494V
- Scanner System: NTSC
- Minimum Illumination: 0.01LUX/F1.2
- D/N Selection:Color/B/W/Auto
- O.S.D Menu: Available
- Language: Chinese/English
- Noise Reduction: 2D-NR 0-15 level
- Gain Control: Auto/MANUAL
- White Balance: Auto/MANUAL
- Backlight Compensation: BLC/HLC/OFF selectable
- S/N Ratio: ≥48dB
- Sync. System: Internal
- Video Output: 1.0Vp-p/75Ω

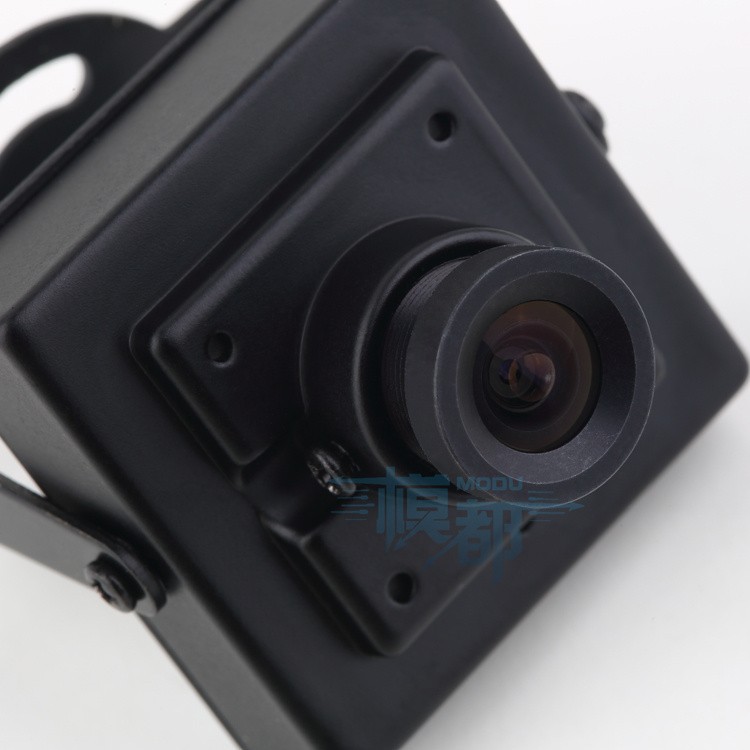

- Lens: 3.6mm
- Power: DC12V±5%
- Working current: 70mA
- Operation Tem: -20℃--60℃

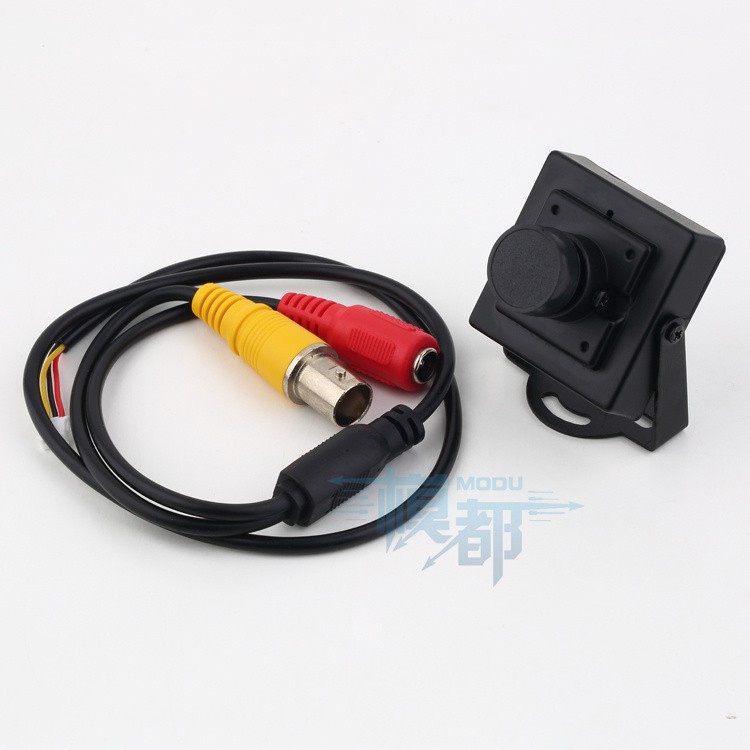

Wiring guide:
Red- positive ("+"),
black - Negative ("-"),
Yellow - signal
