MOSFET Driver IR2125 SINGLE CHANNEL DRIVER DIP-8
close

Features:

• Floating channel designed for bootstrap operation

Fully operational to +500V

Tolerant to negative transient voltage

dV/dt immune

• Gate drive supply range from 12 to 18V

• Undervoltage lockout

• Current detection and limiting loop to limit driven

power transistor current

• Error lead indicates fault conditions and programs

shutdown time

• Output in phase with input

• 2.5V, 5V and 15V input logic compatible

• Also available LEAD-Free

Datasheet: https://www.infineon.com/dgdl/ir2125.pdf?fileId=5546d462533600a4015355c85ba31694

Single IGBT Gate Driver MC33153 Mosft Driver
close

The MC33153 is specifically designed as an IGBT driver for high

power applications that include ac induction motor control, brushless

dc motor control and uninterruptable power supplies. Although

designed for driving discrete and module IGBTs, this device offers a

cost effective solution for driving power MOSFETs and Bipolar

Transistors. Device protection features include the choice of

desaturation or overcurrent sensing and undervoltage detection. These

devices are available in dual−in−line and surface mount packages.

Features:

• High Current Output Stage: 1.0 A Source/2.0 A Sink

• Protection Circuits for Both Conventional and Sense IGBTs

• Programmable Fault Blanking Time

• Protection against Overcurrent and Short Circuit

• Undervoltage Lockout Optimized for IGBT’s

• Negative Gate Drive Capability

• Cost Effectively Drives Power MOSFETs and Bipolar Transistors

• This is a Pb−Free and Halide−Free Device

Datasheet: https://www.onsemi.com/pub/Collateral/MC33153-D.PDF

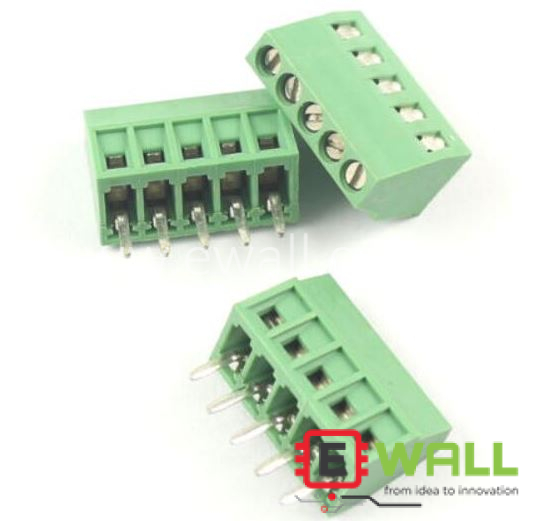

2EDG 5.08-5P Straight Pin Terminal Plug PCB Screw Terminal Block (Pair)
close

2EDG 5.08-5P Straight Pin Terminal Plug PCB Screw Terminal Block

Panasonic 2 A SPNO Solid State Relay with PCB Mount Holder APA831 PA1A-PS
close

Panasonic 2 A SPNO Solid State Relay, PCB Mount MOSFET, 100 V Maximum Load with Panasonic Nais APA831 PA1A-PS

Dual MOSFET Drivers MC33151 Mosft Driver
close

The MC34151/MC33151 are dual inverting high speed drivers

specifically designed for applications that require low current digital

circuitry to drive large capacitive loads with high slew rates. These

devices feature low input current making them CMOS and LSTTL

logic compatible, input hysteresis for fast output switching that is

independent of input transition time, and two high current totem pole

outputs ideally suited for driving power MOSFETs. Also included is

an undervoltage lockout with hysteresis to prevent erratic system

operation at low supply voltages.

Typical applications include switching power supplies, dc to dc

converters, capacitor charge pump voltage doublers/inverters, and

motor controllers.

These devices are available in dual−in−line and surface mount

packages.

Features

• Two Independent Channels with 1.5 A Totem Pole Output

• Output Rise and Fall Times of 15 ns with 1000 pF Load

• CMOS/LSTTL Compatible Inputs with Hysteresis

• Undervoltage Lockout with Hysteresis

• Low Standby Current

• Efficient High Frequency Operation

• Enhanced System Performance with Common Switching Regulator

Control ICs

• Pin Out Equivalent to DS0026 and MMH0026

• These are Pb−Free and Halide−Free Devices

Datasheet: https://www.onsemi.com/pub/Collateral/MC34151-D.PDF

Dual MOSFET Driver MC33152
close

The MC34152/MC33152 are dual noninverting high speed drivers specifically designed for applications that require low current digital signals to drive large capacitive loads with high slew rates. These devices feature low input current making them CMOS/LSTTL logic compatible, input hysteresis for fast output switching that is independent of input transition time, and two high current totem pole outputs ideally suited for driving power MOSFETs. Also included is an undervoltage lockout with hysteresis to prevent system erratic operation at low supply voltages.



Typical applications include switching power supplies, dc-to-dc converters, capacitor charge pump voltage doublers/inverters, and motor controllers.



This device is available in dual-in-line and surface mount packages.

Features



Two Independent Channels with 1.5 A Totem Pole Outputs

Output Rise and Fall Times of 15 ns with 1000 pF Load

CMOS/LSTTL Compatible Inputs with Hysteresis

Undervoltage Lockout with Hysteresis

Low Standby Current

Efficient High Frequency Operation

Enhanced System Performance with Common Switching Regulator Control ICs


Datasheet: https://www.onsemi.com/pub/Collateral/MC34152-D.PDF

4mm Banana Socket Black Female 1PCS
close

4mm Banana Socket Black 1PCS

4mm Banana canon Bullet Plug connector Male Red 1PCS
close

4mm Banana Plug Red 1PCS

4mm Banana Socket Red female 1PCS
close

4mm Banana Socket Red 1PCS

2EDG 5.08-4P Straight Pin Terminal Plug PCB Screw Terminal Block (pair)
close

 2EDG 5.08-4P Straight Pin Terminal Plug PCB Screw Terminal Block

4mm Banana canon bullet Plug Connector Male Black 1PCS
close

4mm Banana Plug Black 1PCS

Doulex Double Side PCB Board CCL PCB Board 10X20 X1.5mm FR-4 Copper Board
close

Doulex PCB Board CCL Board 10X20 X1.5mm FR-4 Copper-Clad Plate Glass Fiber Board
